The new standard in digital virtual pipe and electronic organ technology

Organ Builder - RoboSampler


The only virtual organ software built with modern cutting edge technology
Organ Builder RoboSampler
All software and organs have a built in free trial mode!!

Organ Builder - RoboSampler

Robosampler Calibration Software

Allows very precise calibration to allow it to be used on almost all keyboards

During the first UK COVID-19 lockdown, it became apparent that to be able to continue sampling instruments under such conditions, taking a second person to hold notes was not going to be an option.

This was our answer!!! It is the most advanced automated sampling / key holding robot currently available! It can be calibrated on keyboards up to and including 61 notes and has been designed to actually be more gentle than the human equivalent!

This is a precision engineered piece of equipment which is built to order. Current production to shipping time is approximately 4 weeks. AVAILABLE NOW!!!!!

RoboSampler is narrow enough to be used on almost any keyboard in any position, and whilst it is more gentle than an organist, it has the capability of dealing with the heaviest tracker action instruments. Simple rotary dial and button menu to operate.

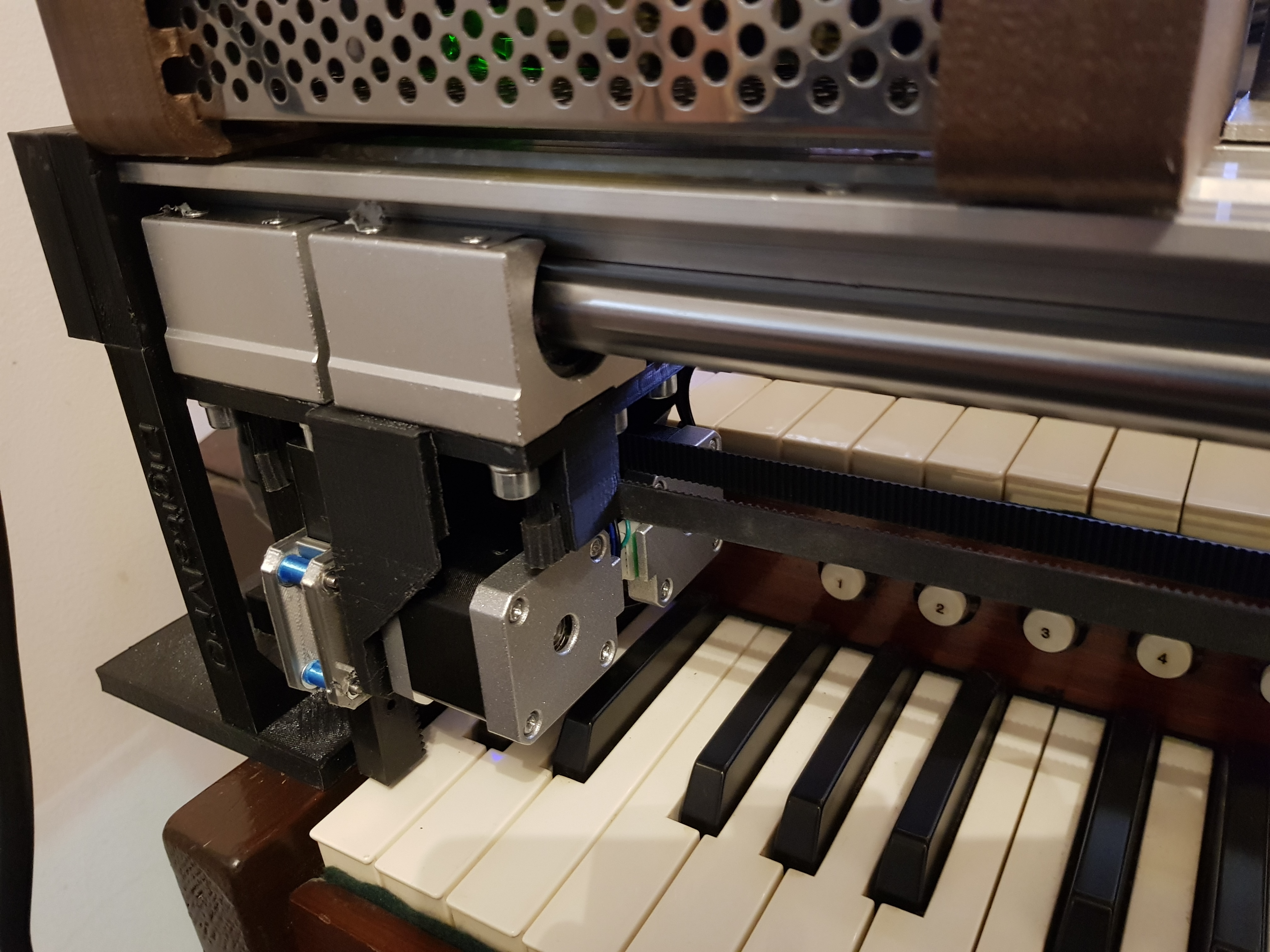

Consisting of twin 20mm stainless steel rails, mounted on aluminium tracks, high torque stepper motors and remaining components 3D printed from durable bioplastics.

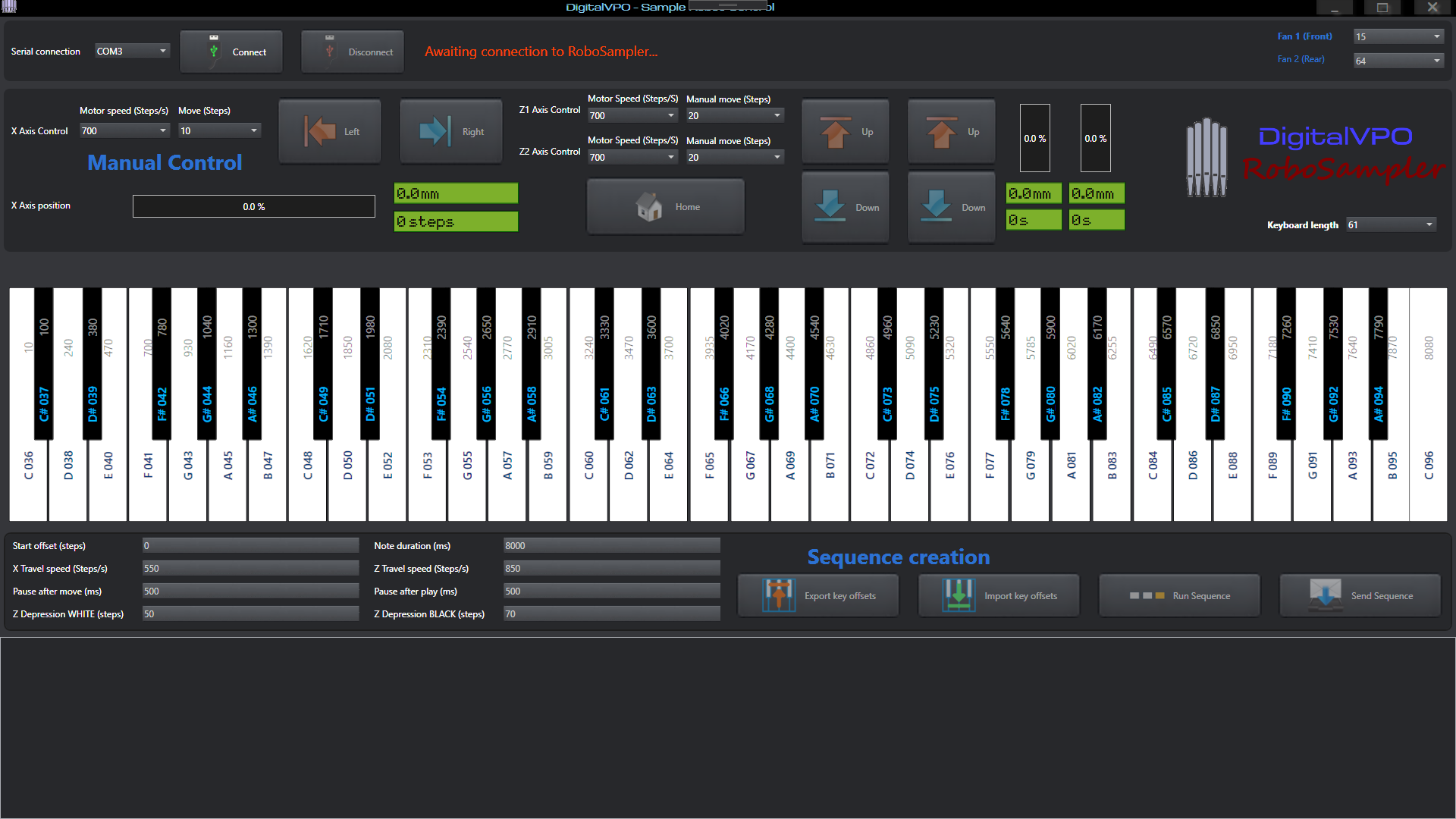

Once keyboard calibrations have been programmed from the desktop application and stored to the SD card, RoboSampler can be used standalone without any further equipment being necessary.

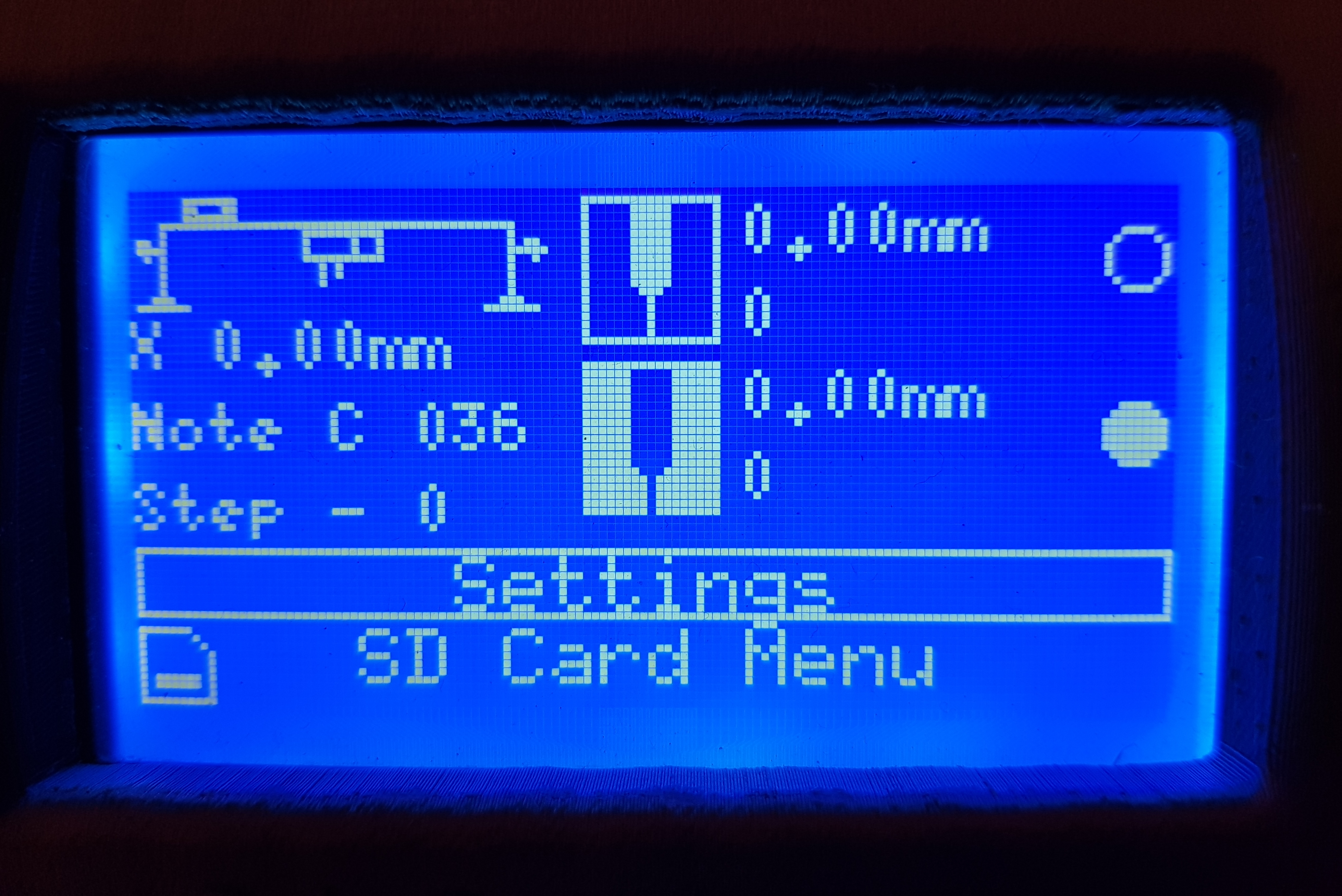

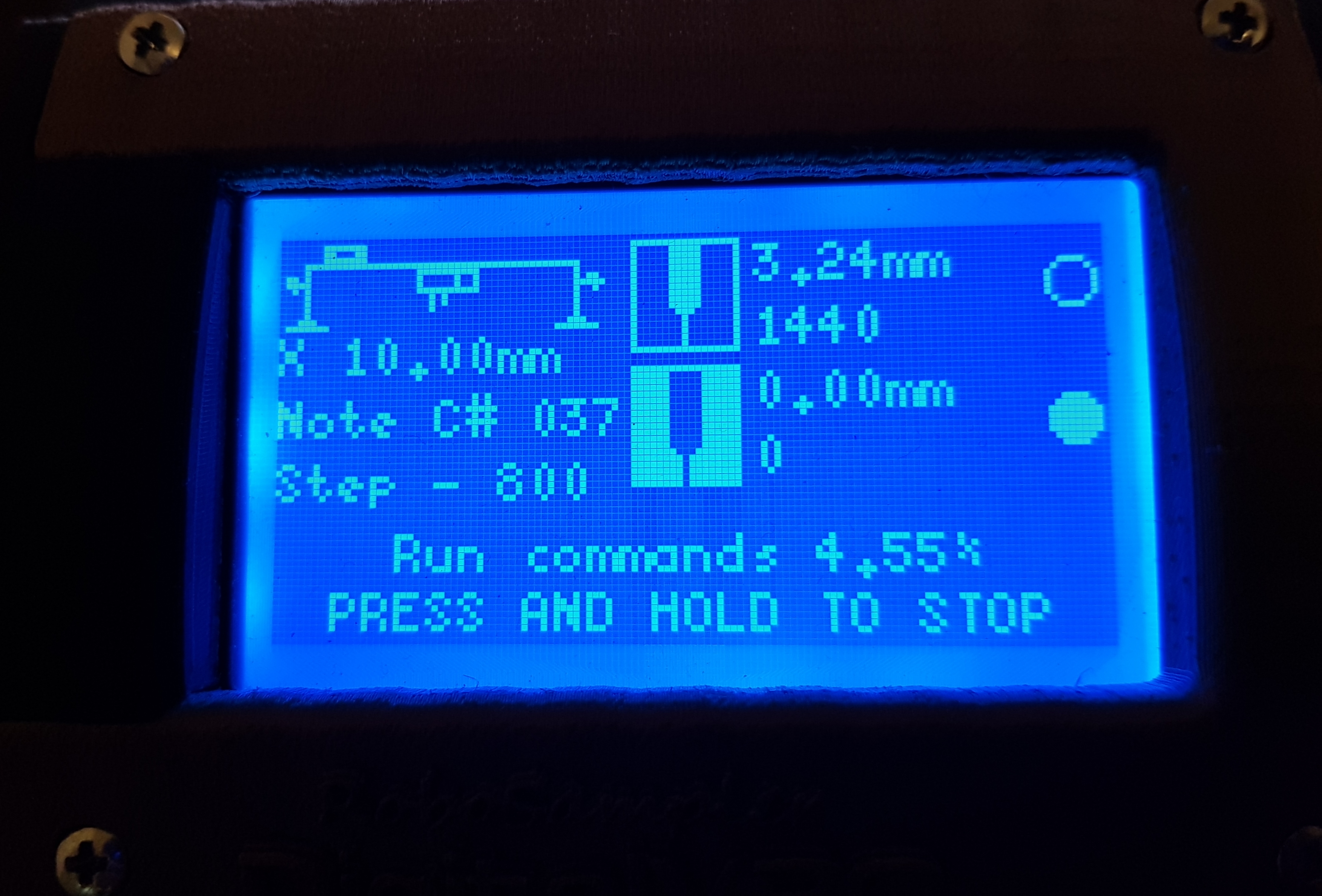

Simple menu and status display of robot operation

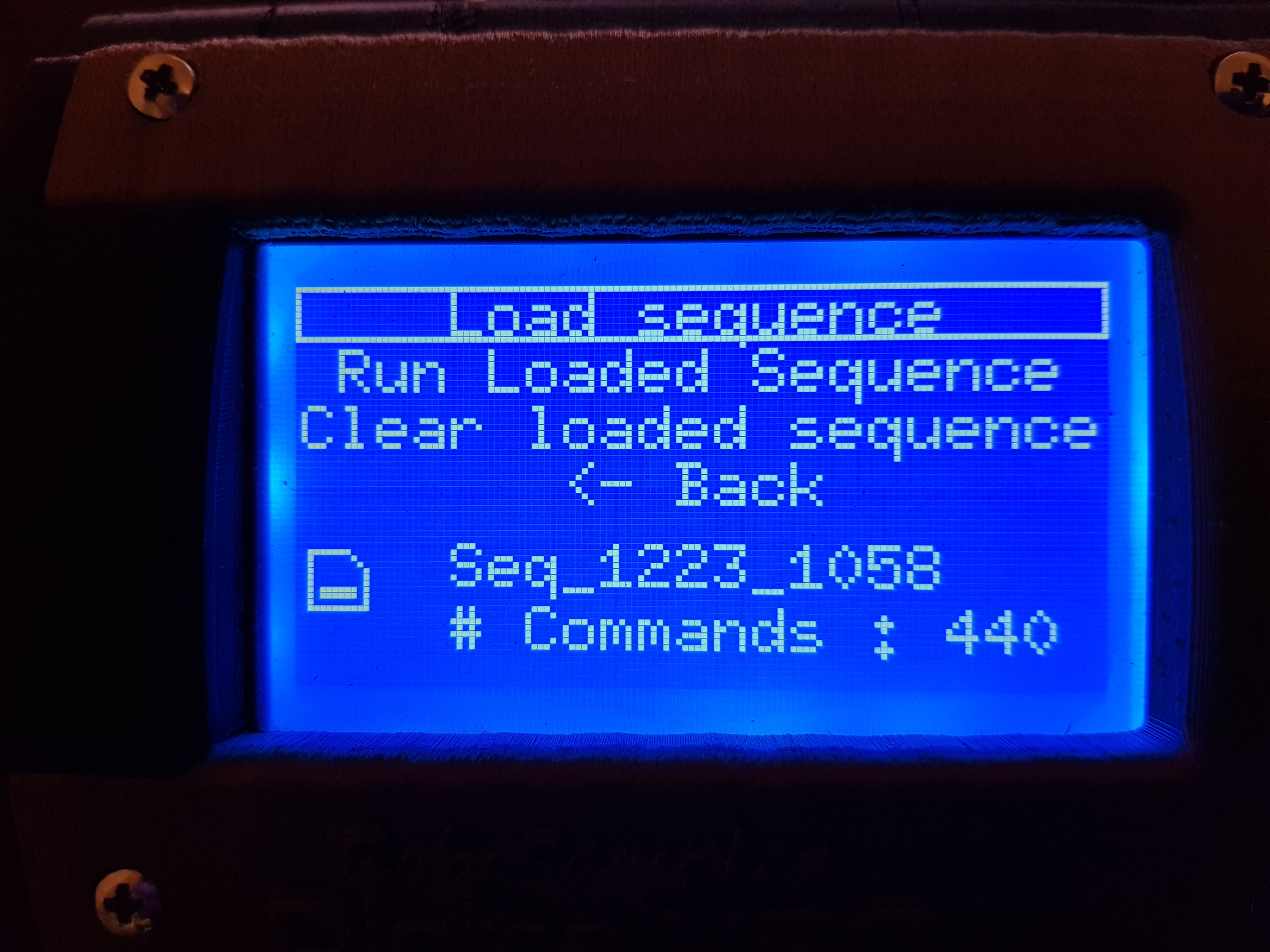

Loading a stored calibration sequence from the built in SD card.
Updateable firmware and new features can be added! This is a precision engineered piece of equipment which is built to order. Current production to shipping time is approximately 4 weeks. AVAILABLE NOW!!!!!

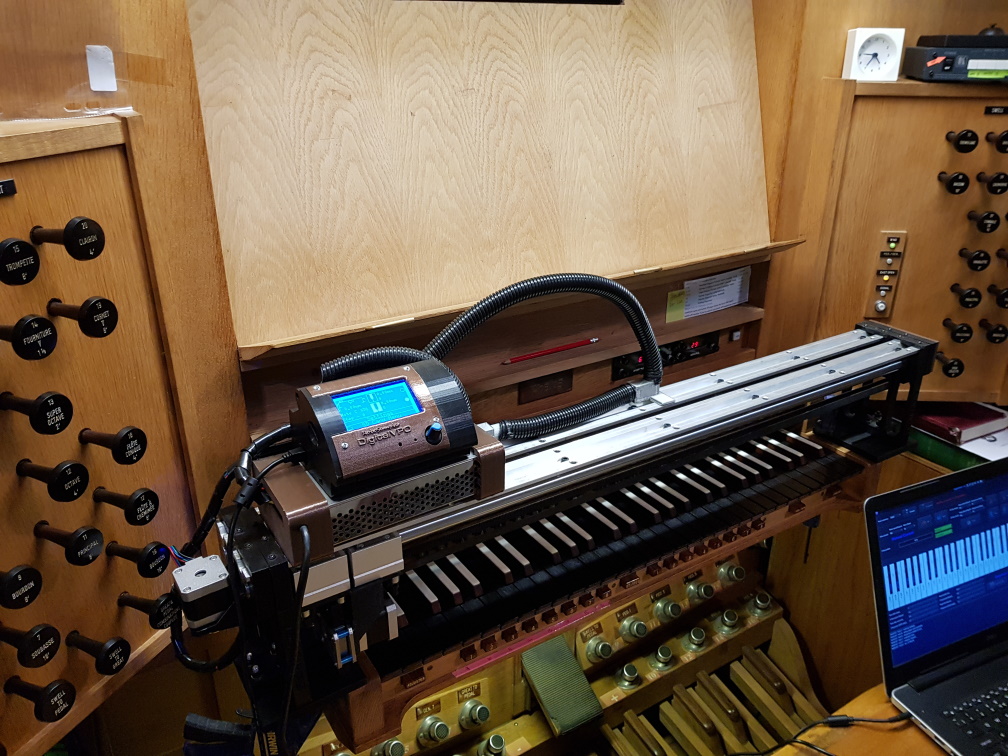

RoboSampler in use at Hexham Abbey
RoboSampler in use at Hexham Abbey

Only available on request and built to order


DigitalVPO RoboSampler

Features at a glance

  • Easy to use graphical menu and display (128x96) and menu rotary commander button.
  • Built in SD card for storing keyboard calibrations
  • Adjustable width for catering for 56-61 note keyboards.
  • Accuracy to around 1/100th mm movement in transverse motion
  • Entirely new British engineered design, using as few non-recyclable materials as possisble
  • Twin key depression motors, one for black, one for white!
  • Custom upgradeable firmware and new features can be added or programmed
  • Total control over the timing of any sampling sequence played
  • Bluetooth Class 4 enabled. Can also be WiFi enabled if preferred
  • Hardware constantly health checks, so no non-commanded movements are possible, and is usually gentler than a human operator pressing the keys manually
  • Super quiet operation mode

!!! Android application under current development to allow you to control RoboSampler up to 40 metres away with new Bluetooth Class 4 support being added !!!


Compatible with

Windows x64

Windows 10 / Windows 11

Windows
  • Windows 10/11 x64 - Intel i5 6th Gen or better
  • 16Gb+ RAM (ideally DDR4)
  • 128Gb+ SSD or M2.SSD
  • Ideally using dedicated soundcard
